Parker Hannifin
Parker was founded by Arthur L. Parker in Cleveland, Ohio, USA back in 1917, and has ever since grown to become the world leading diversified manufacturer of motion and control technologies and systems, achieving US$14.3billion in total annual revenue (2018). Parker products provide highly precision-engineered solutions to a vast variety of mobile and industrial markets including but not limited to Oil & Gas, petrochemical, process industry, powerplants, fluid and gas handling, climate control and more. It is also a provider of aircrafts parts and has maintenance contracts with aircraft manufacturers like Airbus and Commercial Aircraft Corporation of China (COMAC).

Flowtrend Instrumentation, being the distributor of Parker Hannifin Malaysia under the instrumentation division, aims to constantly provide our customer with quality service and products. All our Parker fittings, tubings, valves, etc are internationally standard certified to perform excellently in various operating conditions with leak-free connections, meeting highest safety standards and ease of maintenance & installation at attractive cost. In order to enhance customers’ productivity and cost-saving, we also custom-tailor inventory management program to keep stocks and expedite delivery service.

Products
Tubing: When it comes to hydraulic and instrumentation systems processing harsh media or in corrosive environments, Parker offers quality-assured seamless stainless steel tubing which achieve high safety, integrity and reliability. The tubing features strictly controlled ovality, concentricity and hardness to ensure consistent quality and reduce risk of leakage. The high surface smoothness and close dimensional tolerances of Parker tubing provides a perfect fit when connected with couplings or Parker fittings. Parker offers a variety of tubing to suit different applications, including:

  1. ASTM A213/269 Fully annealed, seamless stainless steel 316L/316H tubing
  2. MPI 316/317 Cold drawn , seamless 1/8 hard stainless steel tubing for 15,000 psi MAWP application
  3. Autoclave Engineers 316/317L medium pressure cone & thread (C&T) 1/8 hard, cold drawn, seamless stainless steel tubing for 20,000 psi MAWP application
  4. Autoclave Engineers 316/317L high & ultra high pressure cone & thread (C&T) cold worked seamless stainless steel tubing for 60,000 - 150,000 psi application

Other special material such as 304, 321, 904L and exotic materials such as super duplex 2507, 6Mo, Alloy 625, Alloy 825, Alloy C276 are available upon request. Please contact us for further details.

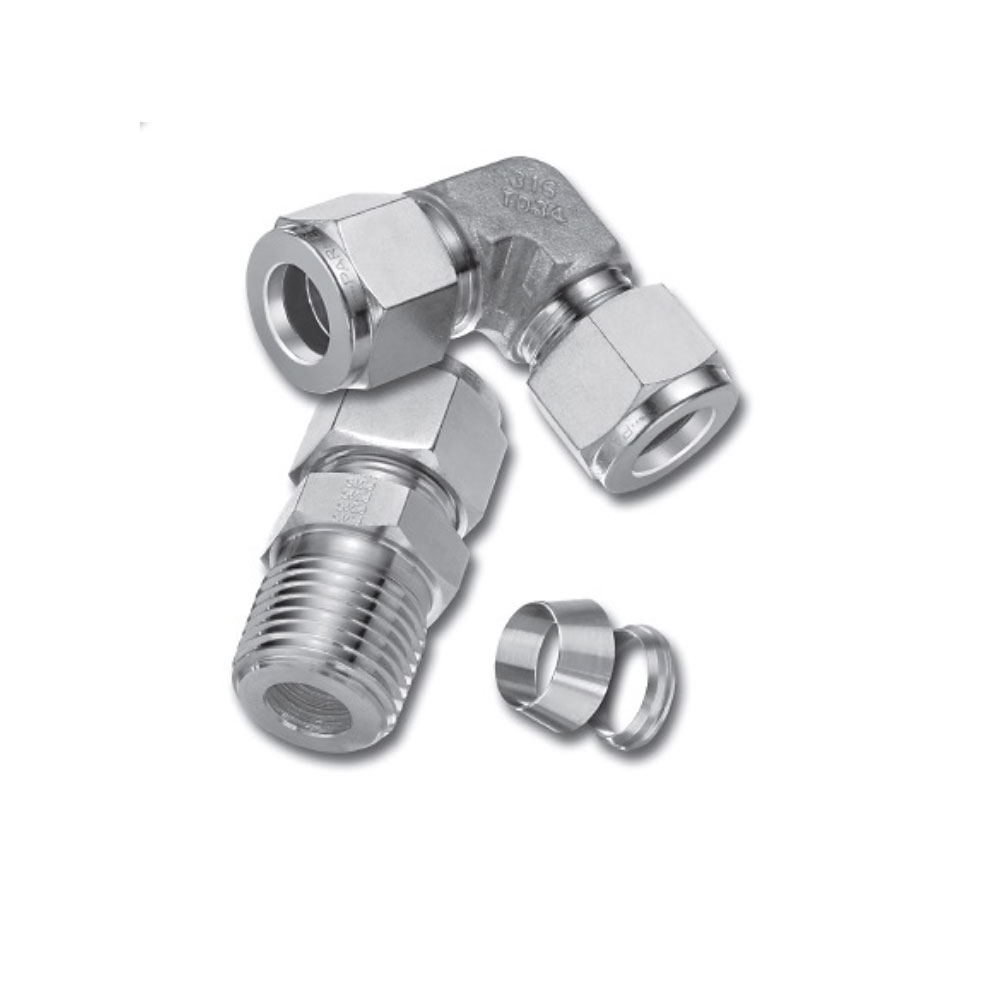

Fittings: Parker CPI/A-LOK single ferrule/double ferrules fitting are designed to meet highest quality standard for use on instrumentation, process and control systems, power, environmental equipment employed in chemical, petroleum, power generating and pulp and paper plants. These fittings are suitable for applications up to 6000 psig. They are available as standard in Heat Code Traceable, 316 Stainless steel. Other materials include steel, brass, nickel-copper, Hastelloy C®, Alloy 600, 6Mo, Incoloy 625 and 825.

Parker has been using a unique, proprietary process, Parker Supercase®, to surface harden its stainless steel ferrules without compromising the corrosion resistance. Unlike traditional high temperature gas carburizing/nitriding hardening process which form chromium nitrides and carbides, Parker Supercase® retains the chromium in solid solution which is essential to resist many types of corrosion by altering the oxide passive layer, without any detrimental effects. The surface hardness of ferrule is approximately 70 on Rockwell C scale, ensuring a firm grip and seal on stainless steel tubing.
Parker ASTM

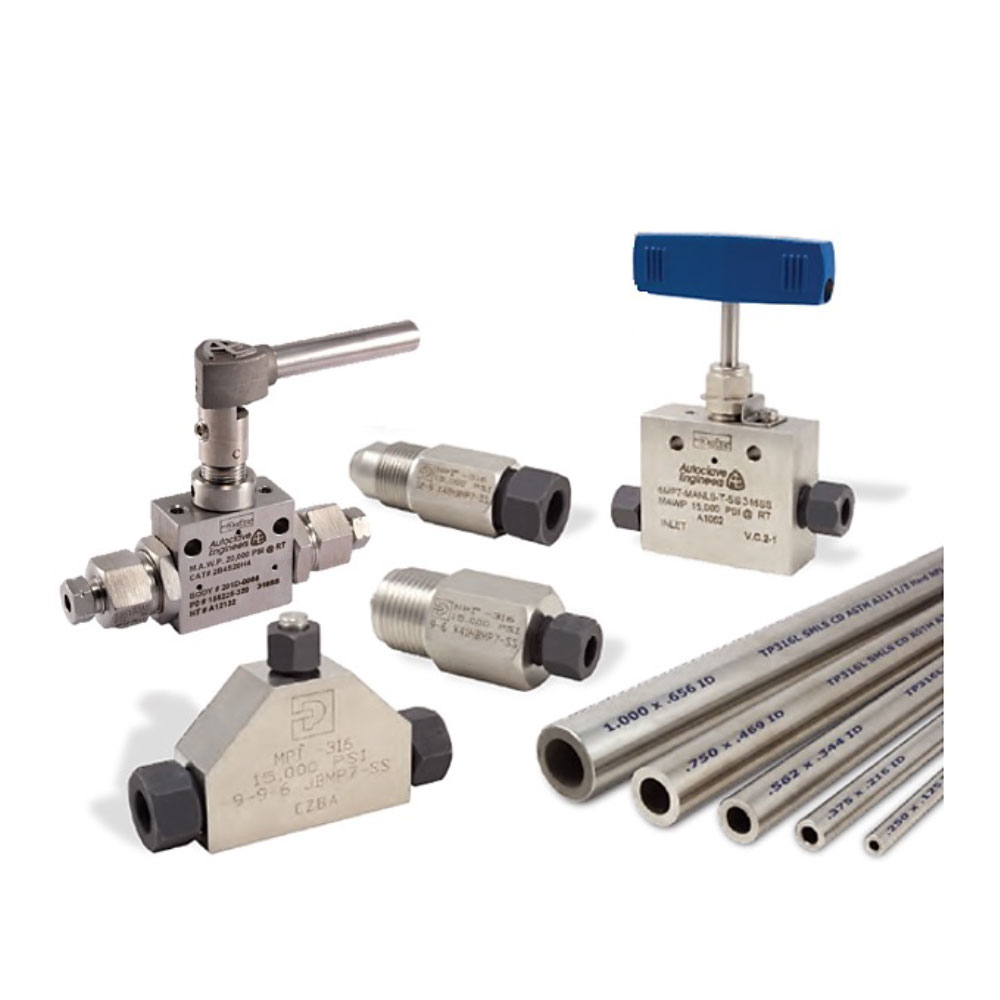

For medium operating pressure from 6000 Psig up to 15,000 Psig, Parker’s MPI double ferrule fittings perform ideally in handling liquids, gases or chemicals. End user has the simplicity of compression fittings and avoid the difficulties of cone and thread connection which is labour intensive, time consuming and require special tools.

Advanced Features

In addition, Parker Autoclave Engineers offers refined cone & thread connections which are capable of handling ultra-high pressure in excess of 60,000 psig, up to 150,000 psig.

Valve: With years of valve design and development experience Parker Hannifin are able to offer the most comprehensive range of instrument hand valves available to users for a wide variety of markets, industries and applications, including ball valve, needle valve, relief valve, check valve, bellows valve, metering valve, double block & bleed, and two, three, or five valves manifold. Each and every of these valves operates in different maximum allowable temperature and pressure. For more information, please contact our sales representative.


A-LOK Twin Ferrule Compression Fitting

A-LOK Twin Ferrule Compression Fitting

A-LOK®body. Includes precision machined threads and burnished cones for enhanced sealing.

Read More
Instrument Tubing

Instrument Tubing

Quality-assured domestic and non-domestic stainless steel tubing for hydraulic and instrumentation applications

Read More
Valves Manifold

2, 3 & 5 Valves Manifold

Instrument manifold are a consolidation of single valve into a unitised block and allow engineers the flexibility to perform various tasks and functions withut removing the transmitter from its installed position.

Read More
TNV Needle Valve

TNV Needle Valve

Packing below threads isolate...

Read More
F Series Filter

F Series Filter

Replaceable sintered 316 SS filter element...

Read More
B Series Ball Valve

B Series Ball Valve

Free floating ball design...

Read More
C Series Check Valve

C Series Check Valve

Resilient, custom-molded...

Read More

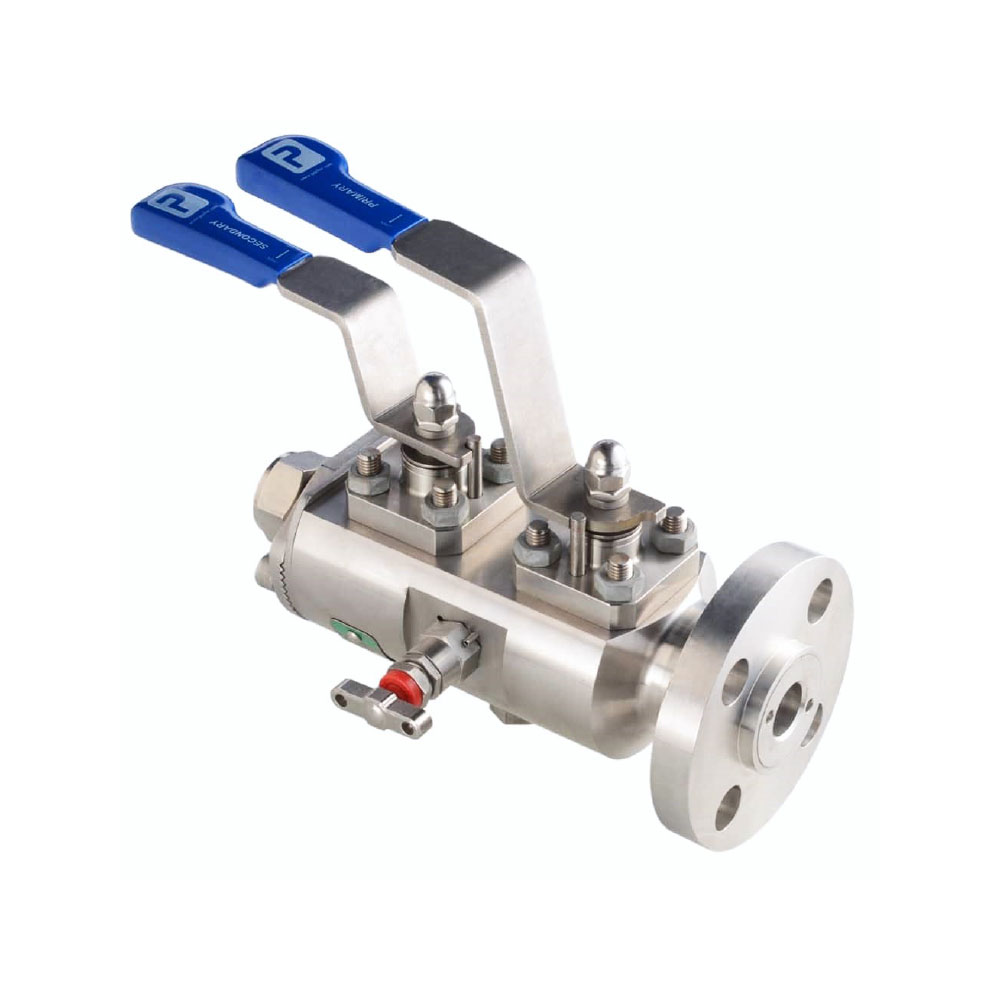

Double Block & Bleed

Double Block & Bleed

Compact double block and bleed valves...

Read More
Monoflange

Monoflange

Compact double block and bleed valves...

Read More


A-LOK Tube Fittings
