TEIKOKU canned motor pumps are SPECIALLY designed for hazardous and toxic fluid applications, achieving SAFETY, RELIABILITY and QUALITY excellence. TEIKOKU pumps are SEALLESS, LEAK-FREE and COMPACT. No mechanical seals are used in this pump. Therefore, no leakage can occur, making it excellent for hazardous and corrosive fluid applications. TEIKOKU pumps allow the pumped fluid to flow into the motor area providing both LUBRICATION and COOLING to the bearing and motor so NO EXTERNAL LUBRICATION is required. Our pumps are QUIET as lesser rotating parts, such as the absence of a cooling fan, and the thick-shell container of the canned pump produce lesser noise.
All pump parts are easily replaceable and all pumps are equipped with a TRG Meter, which is a SPECIAL electrical monitoring device specifically designed by TEIKOKU to monitor the bearings condition of the pump therefore providing EASE OF MAINTENANCE.
Our pumps can be designed to handle conditions from full vacuum up to 5,000 psi / 35 MPa. We provide excellent after-sales services such as inspection, maintenance and servicing of TEIKOKU pumps, convenient and fast delivery of standard spare parts, and excellent customer service.
Canned Motor Pumps: Teikoku canned motor pumps caters to safety, reliability and quality needs in hazardous applications. Teikoku canned motor pumps are certified by TIIS (Japan), PTB (Germany) and many others which makes it well-qualified for hazardous and corrosive fluid applications. Teikoku pumps can be specifically designed to handle slurries, low to high temperatures and high-pressure conditions. We offer a wide range of tailor-made canned pumps such as multistage pumps, canned motor sealless mixers, double suction TCMP and vertical reverse circulation TCMPs. All Teikoku canned motor pumps are inspected and tested before shipment to guarantee product quality.
Metering Pumps: Teikoku metering pumps are API 675 compliant with a discharge capacity range of 0.005 to 3.9 L/h per head with a discharge pressure up to 50 Mpa. Our metering pumps can withstand medium temperatures up to 200°C, viscosity up to 25,000 mPa.s, and solid size up to 1mm. Our metering pumps can be further modified to higher specifications upon request. The diaphragm of our metering pumps comes in either PTFE or SUS316 material and all Teikoku metering pumps are equipped with diaphragm rupture detectors.

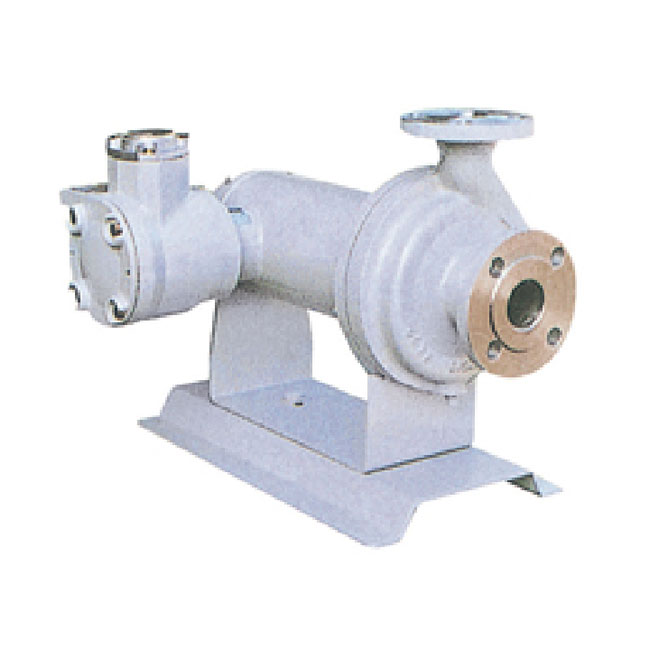

Type FV Standard Design
Chemical service pumps for a wide range of non-slurry liquid. Available in 304 SS, 316 SS and other high alloys. Available with optional heating or cooling jackets for both motor and pump. Available with Explosion Proof motors.Read More
Type B for High Temperature Services
Zero leakage service for hot oils, hot water and for any other high temperature chemicals. Available either in horizontal or vertical designs with cooling jacket on motor and an integral heat exchanger. Liquid temp. up to 840 ℉ / 450 ℃Read More
Higher Heat Resistant Canned Motors, Types U & X
Two different types of non-cooled higher heat resistant canned motors are available in addition to regular canned motors of which max allowable liquid temperature with no cooling is around 130 deg C / 266 deg F. The special motor insulation with non-organic materials is the key for types U and X.Read More
Type D for Slurry
Type D is horizontal design for relatively small amount of fine slurry. Pump features a self-circulating sealing liquid but requires no gas-chamber.Read More
API685 Canned Pump
Horizontal center line mount canned motor pump per API685 (API specification for sealless pumps) for higher liquid temperatures. This photo shows a TCMP designed and manufactured to API685 specifications for pumping high temperature hydrocarbons under elevated system pressure in a refinery application.Read More
TEIKOKU Metering Pump
This is available with options of PTFE or metal diaphragms. It boasts of state-of-art hydraulic system, mechanical and sealing durability in compliance with API 675 with several exquisite protective outfits to produce one of the most accurate metered pumping in your best interest.Read More

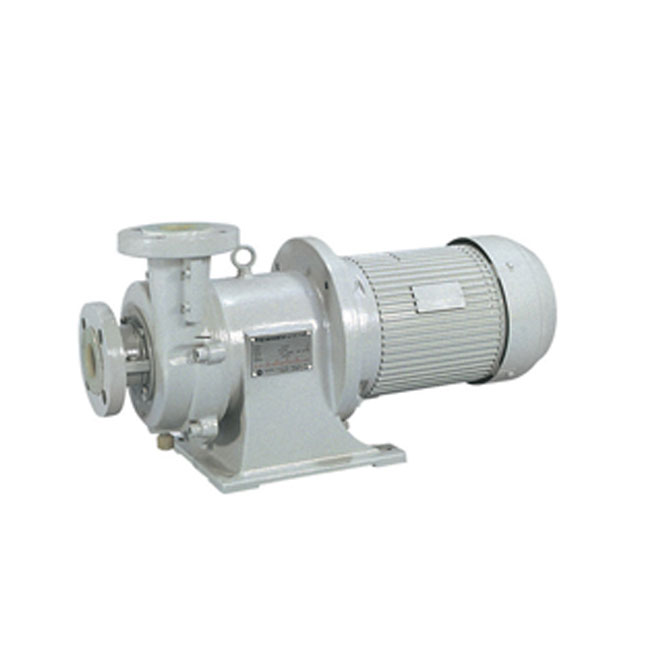

Plastic Lined Mag Drive Pump
Magnetically driven inert plastic lined sealless pump for corrosive applications. All wetted parts are manufactured in either ETFE, PVDF, Rulon and / or Ceramics for superior corrosion resistance against chemicals that attack exotic alloys. Applications include Sulfuric acid (H2S04), Hydrochloric acid (HCl), Chromic acid (Cr03), Phosphoric acid (H3P04) and Hydrogen peroxide (H202).Read More
Type R Canned Motor Agitator
Side or bottom tank entry, zero leakage agitators for high vacuum to high pressure services. Space saving canned motor design requires no alignment and no possibility of ingress or contaminations from outside environment ensuring product quality.Read More
